Custom Style Sheets for PowerApps, pseudo CSS

Yes, CSS for PowerApps, kinda. Actual CSS based style sheets are not possible, but the next best thing is. We can create a few objects to store our styles in, like colors, font sizes, dimensions, etc. and then reference them across the app. Not really cascading style sheets, but let’s call them just style sheets. ;)

Create the style sheet in PowerApps

To create your style sheet, you’ll want to create a new object and then set it’s properties to your your styling values. I suggest a different object per group of properties. This will help you later, as well as other users who want to modify the app.

Here’s a style sheet that I’ve done in my apps:

Set(colColors,
{
 PrimaryGreen: RGBA(13,160,13,1),
 PrimaryBlue: RGBA(12,12,160,1),
 PrimaryBlack: RGBA(0,0,0,.6),
 AccentDarkGray: RGBA(100,100,100,1),
 AccentLightGray: RGBA(200,200,200,1)
});

Set(colFonts,
{
 Title: Font.'Lato Light',
 TitleSize: 35,
 SubTitle: Font.'Lato Hairline',
 SubTitleSize: 28,
 AppTitleSize: 50,
 Button: Font.Arial,
 ButtonSize: 25,
 Body: Font.Lato,
 BodySize: 21,
 Note: Font.Georgia,
 NoteSize: 20,
 ItemTitle: Font.'Lato Black',
 ItemTitleSize: 22,
 ItemBody: Font.Lato,
 ItemBodySize: 20
});

Set(colLayouts,
{
 ScreenTitleX: 40,
 ScreenTitleY: 40,
 FormButtonX: 300,
 FormButtonY: 1030,
 FormButtonHeight: 70,
 FormButtonWidth: 300
})

As you can see, I’ve set my colors and fonts, and even where I want the title and form button, on each screen in the app.

This code is set in the OnVisible property of the home screen, so that every time the app opens, all of these style values are available to the rest of the app.

PowerApps Style sheet in the OnVisible property

From here, use the properties as needed, by calling the object’s property, i.e. colColors.PrimaryGreen

And now all of my titles on my screens all align and look the same!

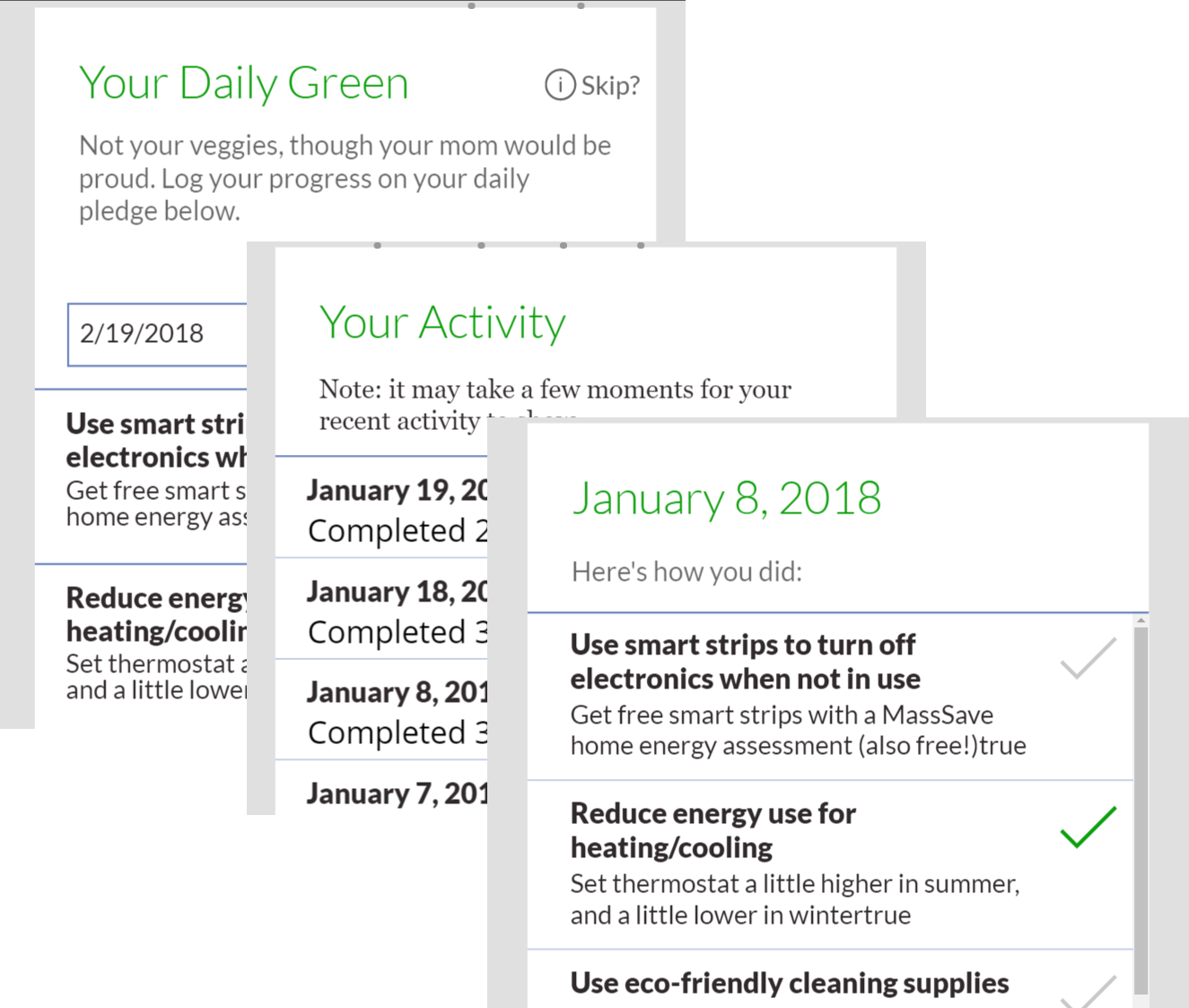

Same styles across all screens on my PowerApp

Done!

Pretty easy right? The only this would only be better if it would cascade, based on object types or names, just like CSS, but it doesn’t.

One trick is top copy/paste similar objects. It can be tedious to set these properties for every object you need. For example, as you make your new page, copy the title from the previous screen and paste it into your new screen. The properties carry over with it, so all you have to do is change the text!

‘Til next time, Happy PowerApp’n!

Advertisements

11 thoughts on “Custom Style Sheets for PowerApps, pseudo CSS

Add yours

  1. Awesome stuff there David.

    Cascading those values is a real pain. Now set and forget. Saves a lot of time. Especially as an app grows like changes in navigation menus etc.

    Like

  2. I followed this pretty extensively in a recent app (~100 pseudo-CSS attributes) only to find out that the app would not load on mobile (iPhone) nor in Dynamics365. Might want to preview your app with all the OnStart pseudo-CSS code to make sure it loads before going to deep on this one.

    Liked by 1 person

      1. Hi David, sure, i’ll share the code. Couldn’t find your email address on the “How can I help” page (I probably just missed it). Here is the code I used:

        “Pseudo-CSS per https://davidlozzi.com/2018/02/21/custom-style-sheets-for-powerapps-pseudo-css/“;

        Set(varColors,
        {
        HeaderFooter: ColorValue(“#3C4D5D”),
        SubtitleText: ColorValue(“#ffffff”),
        SubtitleBackground: ColorValue(“#c8c8c8”),
        FormBackground: ColorValue(“#ffffff”),
        IconBackground: ColorValue(“#4fa3ae”),
        ButtonSelected: ColorValue(“#4fa3ae”),
        ButtonUnselected: ColorValue(“#f5f5f5”),
        Text: ColorValue(“#ffffff”),
        FormText: ColorValue(“#000000”),
        Warning: ColorValue(“#f7b512”),
        Danger: ColorValue(“#c40000”),
        Success: ColorValue(“#000000”),
        Information: ColorValue(“#007dc6”)
        });

        Set(varFonts,
        {
        Title: Font.’Open Sans’,
        TitleSize: 22,
        TitleWeight: “Bold”,
        SubTitle: Font.’Open Sans’,
        SubTitleSize: 18,
        FormSize: 15,
        FormWeight: “Bold”,
        ErrorSize: 12,
        ErrorWeight: “Semibold”,
        DefaultErrorText: “This is a required field.”,
        AppTitleSize: 28,
        Button: Font.’Open Sans’,
        ButtonSize: 25,
        ButtonWeight: “Semibold”,
        Body: Font.’Open Sans’,
        BodySize: 21,
        Note: Font.’Open Sans’,
        NoteSize: 20,
        ItemTitle: Font.’Open Sans’,
        ItemTitleSize: 22,
        ItemBody: Font.’Open Sans’,
        ItemBodySize: 20,
        LabelPadding: 0
        });

        Set(varLayout,
        {
        HeaderHeight: 55,
        HeaderFooterWidth: 1366,
        HeaderX: 0,
        HeaderY: 0,
        FooterHeight: 768 – varLayout.FooterY,
        FooterX: 0,
        FooterY: 0,
        TitleX: 40,
        TitleY: 40,
        TitleAlign: “Center”,
        SubtitleX: 0,
        SubtitleY: varLayout.HeaderHeight,
        SubtitleHeight: 64,
        SubtitleAlign: “Center”,
        BackgroundX: 0,
        BackgroundY: varLayout.HeaderX + varLayout.HeaderHeight + varLayout.TabHeight,
        Tab1X: 0,
        Tab2X: varLayout.Tab1X + varLayout.TabWidth + varLayout.TabSpacer,
        Tab3X: varLayout.Tab2X + varLayout.TabWidth + varLayout.TabSpacer,
        Tab4X: varLayout.Tab3X + varLayout.TabWidth + varLayout.TabSpacer,
        TabY: 105,
        TabHeight: 64,
        TabWidth: 312,
        TabSpacer: 33,
        YSpacer: 4,
        XSpacer: 50,
        FormLabelWidth: 343,
        FormLabelHeight: 28,
        FormInputWidth: 326,
        FormInputHeight: 40,
        FormLabelShortWidth: 170,
        FormInputShortWidth: 156,
        FormErrorHeight: 19,
        FormOutlineWidth: 345,
        Column1X: 82,
        Column2X: 509,
        Column3X: 936,
        Card1Y: 128,
        Card2Y: 221,
        Card3Y: 314,
        Card4Y: 407,
        Card5Y: 500,
        Card6Y: 592,
        Column4X: 1200,
        FooterY_withAllErrors: 715,
        FooterY_withNoErrors: 647,
        LowerButtonY: varLayout.FooterY + 20,
        LLeftButtonX: 75,
        LCenterButtonX: 300,
        LRightButtonX: varLayout.HeaderFooterWidth – varLayout.ButtonWidth – varLayout.LLeftButtonX,
        ButtonX: 20,
        ButtonY: 740,
        ButtonHeight: 52,
        ButtonWidth: 200,
        ButtonTLRadius: 10,
        ButtonTRRadius: 10,
        ButtonBLRadius: 10,
        ButtonBRRadius: 10,
        TabTLRadius:15,
        TabTRRadius:15,
        TabBLRadius:0,
        TabBRRadius:0
        })

        Liked by 1 person

      2. Did you get any errors with this code? I am getting a lot when referencing varLayout from within itself, like at:
        `FooterHeight: 768 – varLayout.FooterY,`
        `SubtitleY: varLayout.HeaderHeight,`
        etc

        Otherwise this works great in my app!
        email me david.lozzi at slalom.com, let’s see what we can get working here.

        Like

    1. Did you change views? We set this on the OnVisible property, so it only sets when the screen becomes visible. If so, and it still doesn’t work, email me a screen shot of the style sheet and what control properties you’re using it on. David.lozzi at slalom.com
